Wire Matrix Turbulators (Wire Flexible Inserts) for heat exchangers
Wire Matrix Turbulators consist of near oval loops of wire that can be simply pulled through the tubes as the turbulators are flexible. No soldering of the turbulator fins to tube walls is necessitated.
We are manufacturers of wire matrix turbulators (flexible turbulators) suitable for tube inner diameter as low as 3 mm, there being no upper limit for tube id or length of the turbulator. The number of loops in a foot can be varied between 90 to 600
We manufacture copper wire turbulators, stainless steel wire turbulators, GI Steel wire turbulators. Manufacture of turbulators of any metal wire is possible at our works.
Wire Wound Soldered Turbulators (Rigid Tube Inserts)
Wire wound soldered turbulators consist of rectangular loops of wire spirally wound and soldered over a solid round bar or tube. This wire wound turbulator is inserted inside tube and further soldered to the inner surface of the tube.
We manufacture wire wound turbulators suitable for tube id 8 mm, there being no upper limit for tube size or length. However, maximum operating temperature should not exceed 290 C.
Material of construction for wire wound turbulators being copper wire, stainless steel wire and galvanised steel wires.

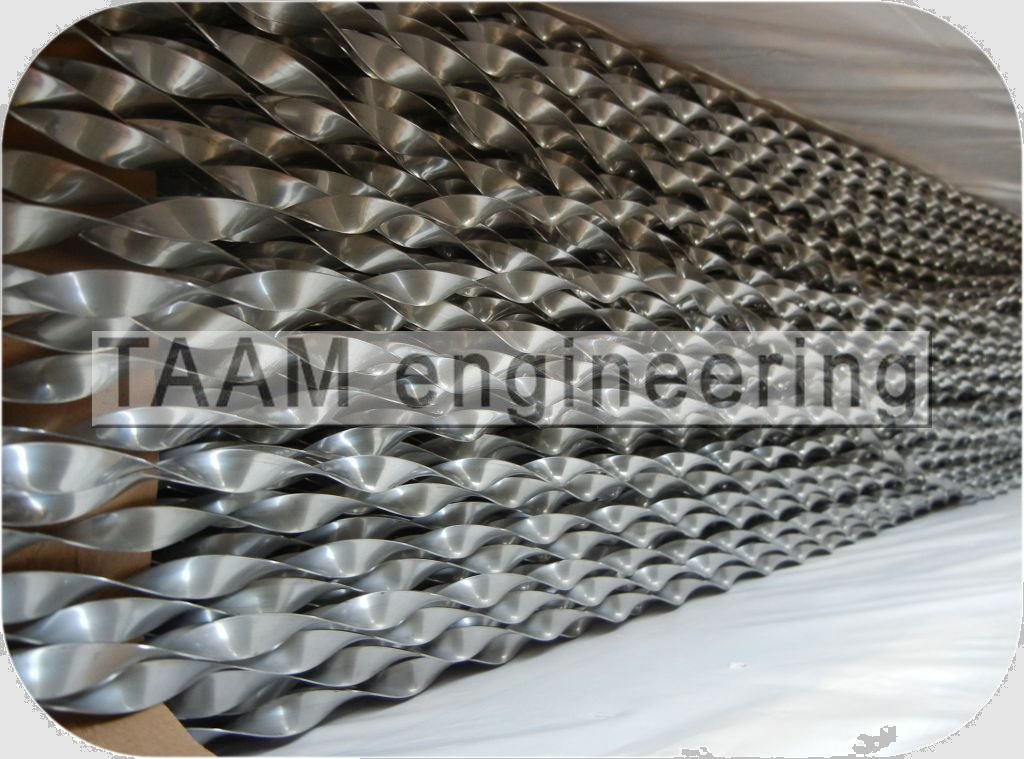

Twisted Tape Tube Inserts (Turbulators)
We manufacture twisted tape tube inserts for enhancing tube side heat transfer.
There is no limit to the length of twisted tape turbulator.
We manufacture twisted tape turbulators of all metals including:
stainless steels
copper
carbon steel
aluminum
